Our Products
Enable your AR glasses with Avegant’s
high performance, compact light engines
AG-30L3
The most compact and power-efficient full color AR light engine onn the market providing customers an LCoS, 30º FoV, efficient, manufacturable solution for AR / AI glasses.
Specifications
- Field of View: 30°
- Aspect Ratio: 1:1
- Resolution: 38ppd – 800×800
- Light output > 2lm (polarized) D65
- Outdoor Mode > 3lm single color
- 150 mW to produce 1,000 nits to the eye at 100% APL
- Angled output
- Volume: 0.7cc
- Mass: 1.3g
- All Optics and Optomechanical
- LCoS Panel
- LED Driver
- LEDs, Flex and Connectors
- Thermal Interfaces
- Seq contrast >450:1, ANSI >80:1
Ways to access samples of the AG-30L3
AG-30L3 Binocular Wireless Development Kit
The AG-30L3 Binocular Wireless Development Kit is a fully functional glasses reference design running Android OS on Qualcomm AR1. It includes a 12 Mpix camera, microphones, speakers and sensors.
AG-20L
The smallest LED/LCoS light engine in the market provides customers a color LCoS, 20º FoV, efficient, manufacturable solution for AR / AI glasses.
Specifications
- Field of View: 20°
- Aspect Ratio: 1:1
- Resolution (ppd): 38ppd – 540×540
- Nominal Light output: 0.5lm (polarized) D65
- Max 1.2 lm (polarized) D65
- Outdoor Mode: 3lm single color
- Nominal Illumination Power: 75mW
- Nominal Panel+Control Power: 110mW
- Volume: 0.9cc
- Mass: 1.9g
- All Optics and Optomechanical
- LCoS Panel
- LED Driver
- LEDs and Flex
- Connectors
- Thermal Interfaces
- Seq contrast >300:1, ANSI >80:1
Ways to access samples of the AG-20L

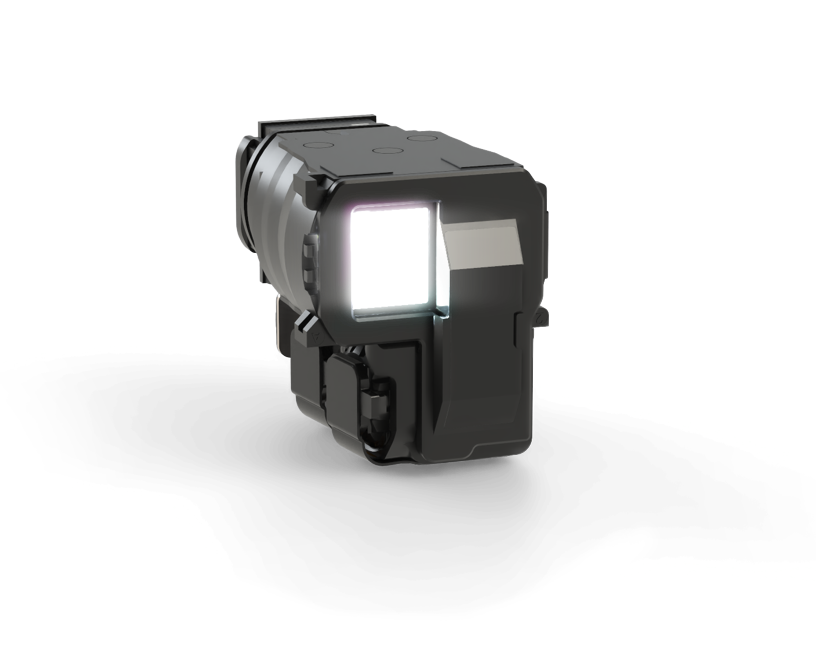

AG-20L Module
Avegant’s 20º light engine is available in an integrated module coupled with a diffractive waveguide from Applied Materials. The module has a unique design to reduce glow.

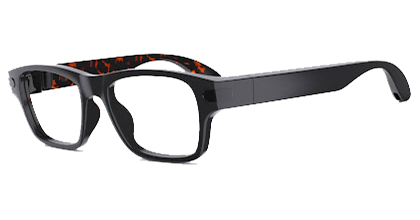

AG-20L Vallhund
The AG-20L2 Wireless Monocular Evaluation Kit is an under 45 gram color display glasses reference design, ideal for OEMs looking at designing lightweight monocular glasses. The display achieves over 4000 nits to the eye.
AG-30L2
This LED/LCoS light engine provides customers a proven LCoS, 30º FoV, efficient, manufacturable solution for AR / AI glasses. AG-30L2 is currently in mass production.
Specifications
- Field of View: 30°
- Aspect Ratio: 1:1
- Resolution (ppd): 34ppd – 720×720
- Nominal Light output: 2lm (polarized) D65
- Max 3lm color
- Outdoor Mode: 6lm single color
- Nominal Illumination Power: 202mW
- Nominal Panel+Control Power: 110mW
- Volume: 1.4cc
- Mass: 2.7g
- All Optics and Optomechanical
- LCoS Panel
- LED Driver
- LEDs and Flex
- Connectors
- Thermal Interfaces
- Seq contrast >300:1, ANSI >80:1
Ways to access samples of the AG-30L2

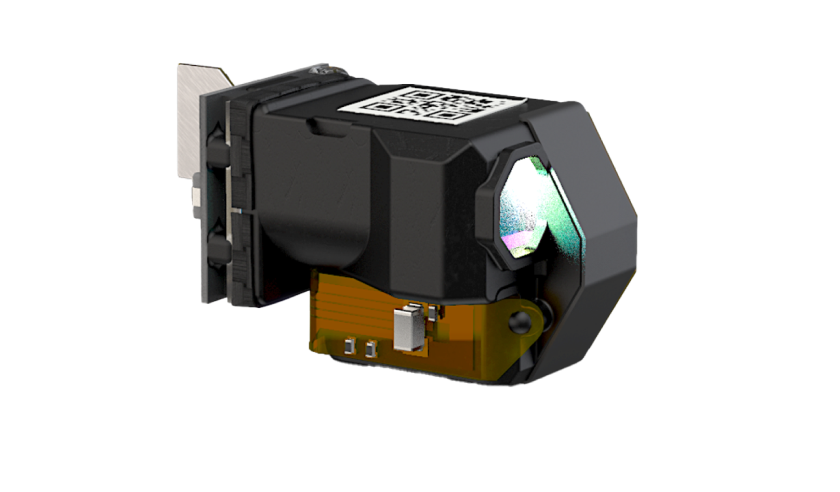

AG-30L2 Light Engine
Avegant’s 30º light engine uses proprietary illumination technology to dramatically reduce engine volume and weight while preserving efficiency and MTF.

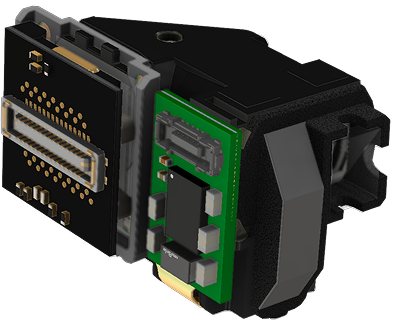

AG-30L2 Eval Kit (monocular)
The AG-30L2 Mono Evaluation Kit is an ideal setup to measure light engine performance and mate light engine to waveguide in a lab environment.

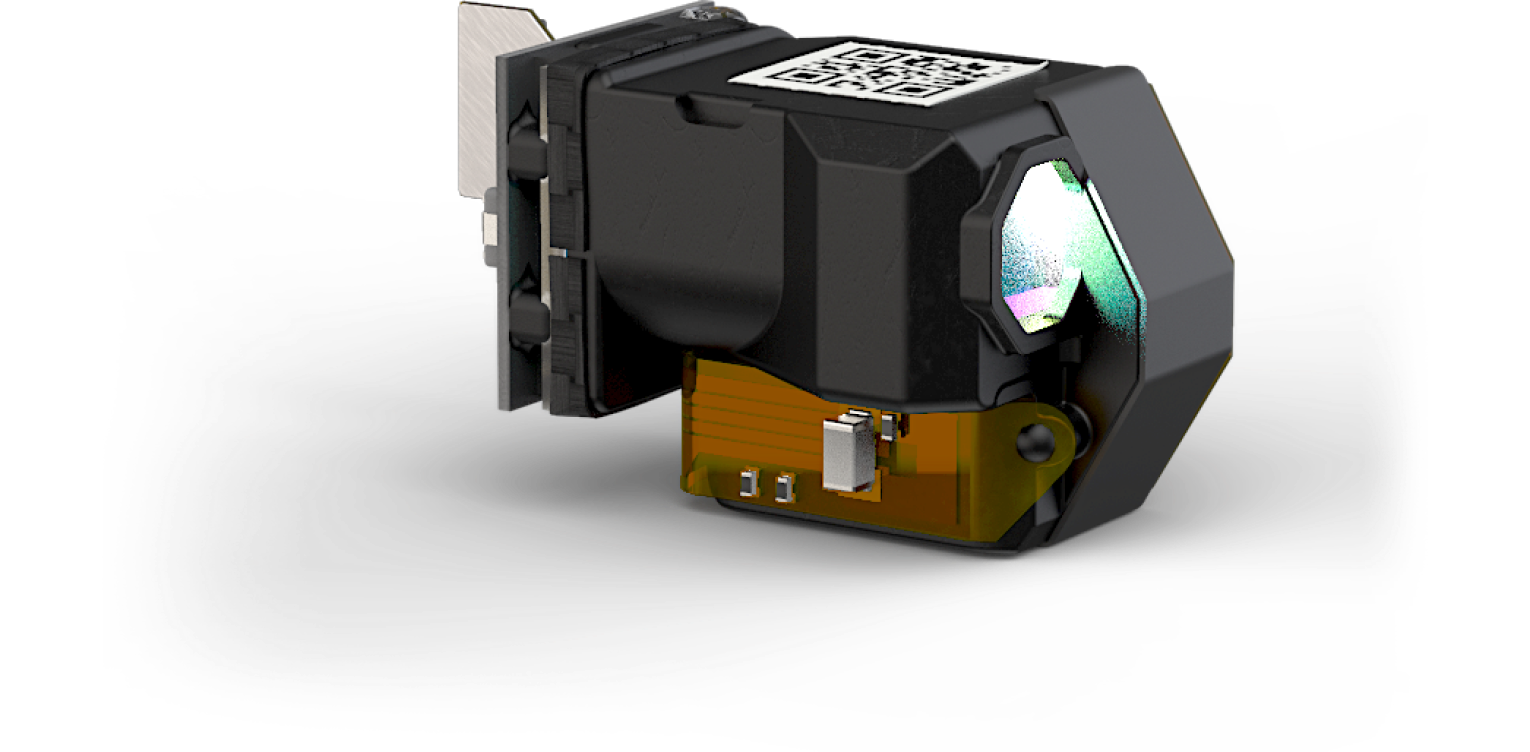

AG-30L2 Eval Kit (binocular)
The AG-30L2 Binocular Evaluation Kit is well suited for binocular glasses developers.

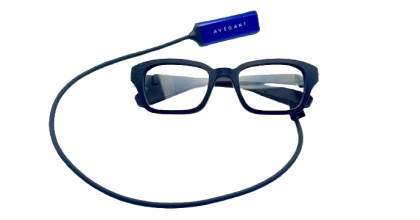

AG-30L2 Dev Kit (binocular, tethered)
The AG-30L2 Tethered Dev Kit is ideal to develop smart glasses experiences. It includes Applied waveguides.

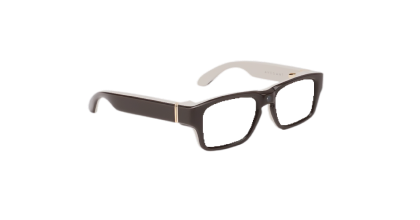

AG-30L2 Dev Kit (binocular, wireless)
The AG-30L2 Wireless Devkit is a full smart glass reference design including Qualcomm AR1 processor and Applied waveguides.
Coming Soon !
AG-50L2
This is the smallest LED/LCoS light engine in the market and provides customers an LCoS, 50º FoV, efficient, manufacturable solution for immersive AR glasses.
Don’t see the display technology you need for your product?
Let us know at contact@avegant.com what you’re looking for.
