Our Products
Enable your AR glasses with Avegant’s
high performance, compact light engines

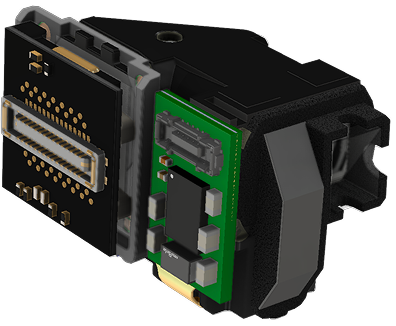

AG-20L
The smallest LED/LCoS light engine in the market provides customers a color LCoS, 20º FoV, efficient, manufacturable solution for AR / AI glasses.
Specifications
- Field of View: 20°
- Aspect Ratio: 1:1
- Resolution (ppd): 38ppd – 540×540
- Nominal Light output: 0.5lm (polarized) D65
- Max 1.2 lm (polarized) D65
- Outdoor Mode: 3lm single color
- Nominal Illumination Power: 75mW
- Nominal Panel+Control Power: 110mW
- Volume: 0.9cc
- Mass: 1.9g
- All Optics and Optomechanical
- LCoS Panel
- LED Driver
- LEDs and Flex
- Connectors
- Thermal Interfaces
- Seq contrast >300:1, ANSI >80:1
Ways to access samples of the AG-20L

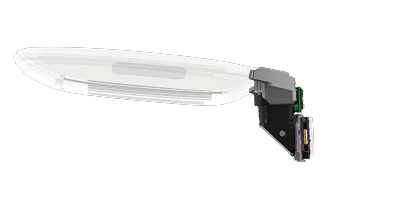

AG-20L Module
Avegant’s 20º light engine is available in an integrated module coupled with a diffractive waveguide from Applied Materials. The module has a unique design to reduce glow.

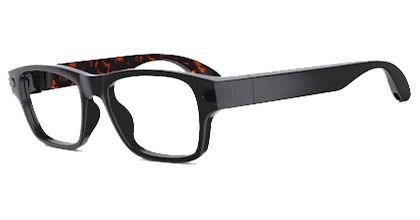

AG-20L Vallhund
The AG-20L2 Wireless Monocular Evaluation Kit is an under 45 gram color display glasses reference design, ideal for OEMs looking at designing lightweight monocular glasses. The display achieves over 4000 nits to the eye.
AG-30L2
The smallest LED/LCoS light engine in the market provides customers an LCoS, 30º FoV, efficient, manufacturable solution for AR / AI glasses.
Specifications
- Field of View: 30°
- Aspect Ratio: 1:1
- Resolution (ppd): 34ppd – 720×720
- Nominal Light output: 2lm (polarized) D65
- Max 3lm color
- Outdoor Mode: 6lm single color
- Nominal Illumination Power: 202mW
- Nominal Panel+Control Power: 110mW
- Volume: 1.4cc
- Mass: 2.7g
- All Optics and Optomechanical
- LCoS Panel
- LED Driver
- LEDs and Flex
- Connectors
- Thermal Interfaces
- Seq contrast >300:1, ANSI >80:1
Ways to access samples of the AG-30L2
AG-30L2 Light Engine
Avegant’s 30º light engine uses proprietary illumination technology to dramatically reduce engine volume and weight while preserving efficiency and MTF.
AG-30L2 Eval Kit (monocular)
The AG-30L2 Mono Evaluation Kit is an ideal setup to measure light engine performance and mate light engine to waveguide in a lab environment.
AG-30L2 Eval Kit (binocular)
The AG-30L2 Binocular Evaluation Kit is well suited for binocular glasses developers.
AG-30L2 Dev Kit (binocular, tethered)
The AG-30L2 Tethered Dev Kit is ideal to develop smart glasses experiences. It includes Applied waveguides.
AG-30L2 Dev Kit (binocular, wireless)
The AG-30L2 Wireless Devkit is a full smart glass reference design including Qualcomm AR1 processor and Applied waveguides.
Coming Soon !
AG-50L
For immersive AR glasses applications, small, efficient, full-color 50° engine coming soon.
Don’t see the display technology you need for your product?
Let us know at contact@avegant.com what you’re looking for.
